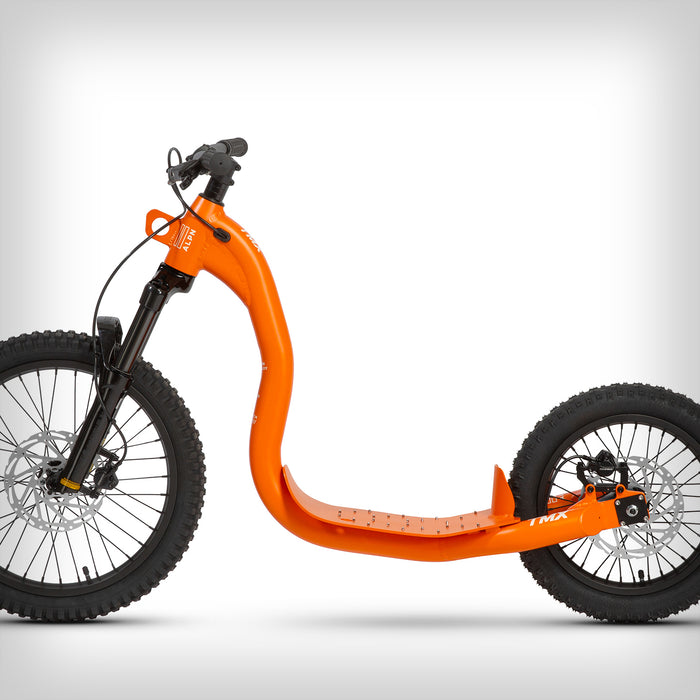

ALPN TMX20-MINITRAIL KID

TMX20-MINITRAIL- Like the big TMX scooters, the little ones also have the genes of pure sports equipment. The aluminum frame with welded footboard impresses with its extremely stable design in oversized format. The braking system with disc brakes ensures perfect deceleration of the scooter, and the built-in suspension fork ensures a relaxed driving experience on unpaved paths - child's play. The adult version uses a BMX handlebar with a tilting stem, which increases the handlebar height to 104 cm (can be adjusted further).

*This scooter is delivered without an antenna for the tow line.

TECHNICAL DATA

• WEIGHT: 9.8kg
• FRAME: Oversize 60mm aluminum frame
• PAINTING: Powder coating
• FORK: Suntour without lock
• SUSPENSION TRAVEL: 100mm
• BRAKES: Tektro 2-piston hydraulic disc brake
• BRAKE SYSTEM: Hydraulic
• BRAKE DISCS: Front and rear 180mm
• WHEELS: Front 20.0 x 2.4" / rear 16 x 2.25"
• AXLES: 15mm thru axles
• HANDLEBAR: 670mm for the Kid Version
• HANDLEBAR: 720mm for the adult version
• STEM: Ø 31.8mm
• FOOTBOARD: Integrated into the frame, powder coated with pins for good stability
• RUNNING BOARD DIMENSIONS: Length 290mm / Width 175mm
• RUNNING BOARD HEIGHT: 175mm
• LOWEST POINT OF FRAME: 110mm
• HANDLEBAR HEIGHT: 850mm
• WHEELBASE: 905mm
• VEHICLE LENGTH: 1475mm

• TOWING DEVICE: Eyelet for tow line integrated in the frame
• ANTENNA: No
• TOW LINE: No

The manufacturer reserves the right to modify the components to a comparable quality.
